MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
Type:
Select Quantity:
Specifications
| Brand | MSI |
| Model | MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD X870E |
| Form Factor | E-ATX 304.8mmx277mm |
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| PCI | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 |
| M.2 Socket | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. |
| Type | DDR5 |
| Slots | 4x UDIMM |
| Supported Memory | Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Maximum Memory | 256GB |
| Graphics | Supports NVIDIA SLI Technology Supports AMD MULTI-GPU |
| Display Port (s) | 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz |

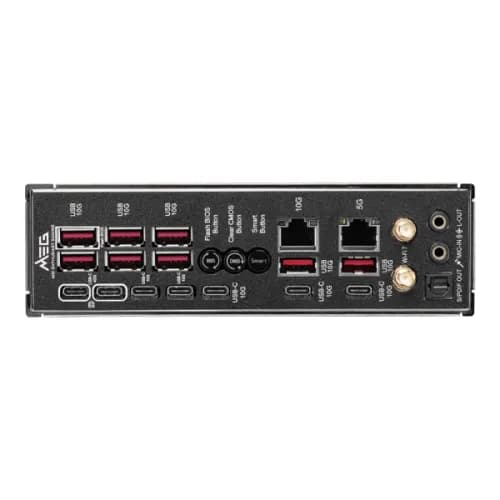

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 5x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| LAN Port (s) | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Supported Storage | 7x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. |
| RAID Supports | RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| Special Features | LED FEATURE 1x Dynamic Dashboard III 1x EZ Digit Debug LED 1x EZ LED Control switch |
Description

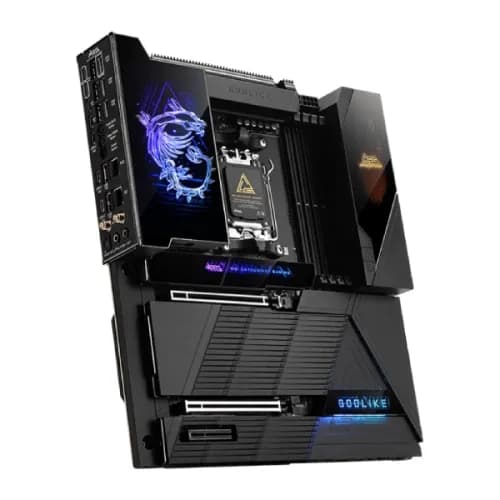

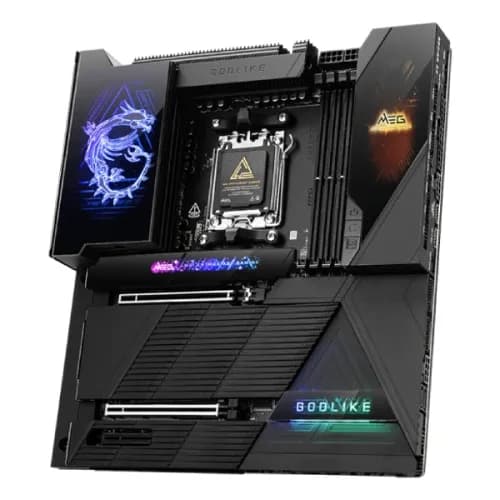

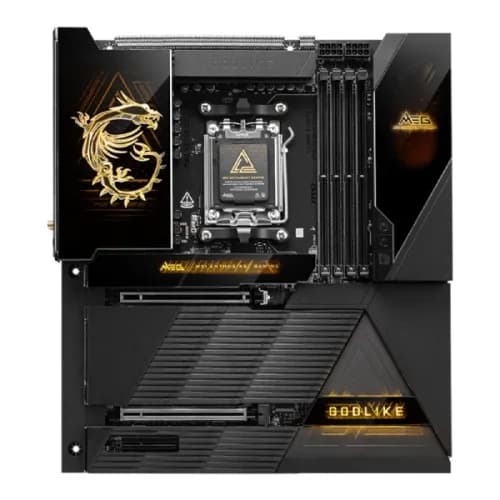

MSI MEG X870E GODLIKE WiFi 7 AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE – AMD X870E Chipset, DDR5 9200+MT/s, PCIe 5.0 & Wi-Fi 7
The MSI MEG X870E GODLIKE is an enthusiast-grade E-ATX motherboard designed for high-performance AMD Ryzen desktop systems. Built around the AMD X870E chipset and AM5 socket, it supports Ryzen 9000, 8000, and 7000 Series desktop processors.
The motherboard features four DDR5 DIMM slots with support for up to 256GB of memory and DDR5 speeds up to 9200+ MT/s through overclocking, depending on the processor and memory configuration. AMD EXPO support is also included for compatible memory modules.
For expansion and storage, the MEG X870E GODLIKE provides two PCIe 5.0 x16 slots and one PCIe 4.0 x4 slot. It also supports multiple high-speed M.2 SSDs, including PCIe 5.0 NVMe drives, with additional M.2 slots available through the included M.2 XPANDER-Z SLIDER GEN5 expansion card.
Connectivity is a major highlight, with Wi-Fi 7 support, 10Gbps and 5Gbps LAN, and dual USB4 40Gbps Type-C ports. MSI also equips the board with a 3.99-inch Dynamic Dashboard III display for hardware monitoring, troubleshooting, BIOS status, clock information, and customization.
Key Features
- AMD X870E Chipset
- AMD AM5 Socket
- Supports Ryzen 9000 / 8000 / 7000 Series
- E-ATX Form Factor
- 4 × DDR5 DIMM Slots
- Up to 256GB RAM
- DDR5 9200+ MT/s (OC)
- AMD EXPO Support
- 2 × PCIe 5.0 x16 Slots
- 1 × PCIe 4.0 x4 Slot
- Multiple PCIe 5.0 M.2 Slots
- M.2 XPANDER-Z SLIDER GEN5
- Wi-Fi 7
- Bluetooth 5.4
- 10Gbps + 5Gbps LAN
- Dual USB4 40Gbps Type-C
- Dynamic Dashboard III 3.99-inch LCD
- Realtek ALC4082 Audio + ESS DAC/HPA
- 24+2+1 Duet Rail Power System
- 110A SPS Power Design
- 10-Layer PCB
- Windows 11 64-bit Support
Why Choose MSI MEG X870E GODLIKE?
- Premium X870E platform for AMD Ryzen processors
- High-speed DDR5 memory support
- PCIe 5.0 support for next-generation graphics and storage
- Multiple M.2 slots for high-performance NVMe storage
- Built-in Wi-Fi 7 and Bluetooth 5.4
- 10Gbps and 5Gbps wired networking
- Dual USB4 40Gbps Type-C connectivity
- Advanced VRM and cooling design
- Dynamic Dashboard III for convenient system monitoring
- Designed for high-end gaming, content creation, and workstation builds
