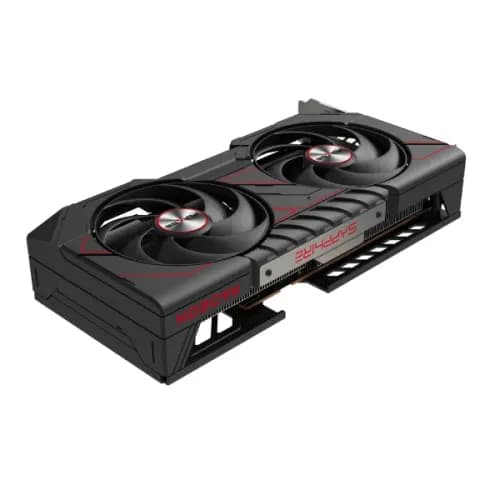

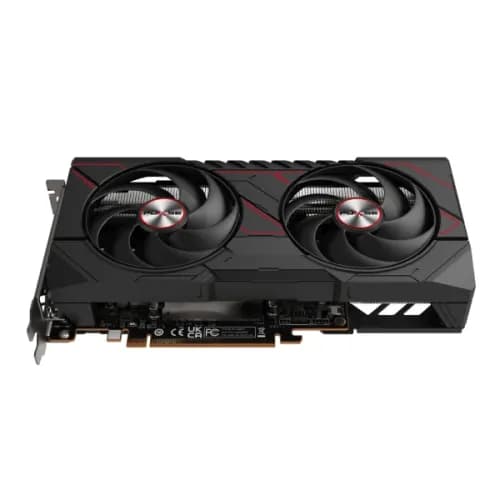

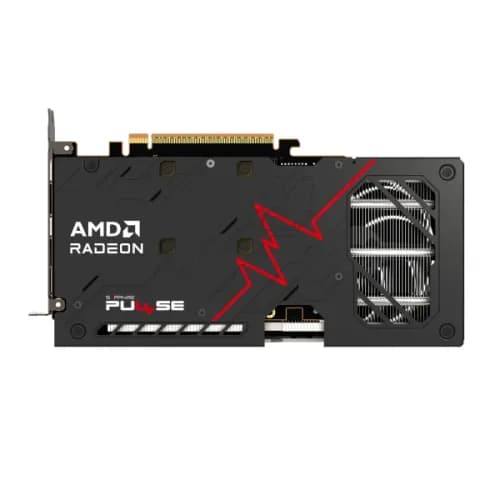

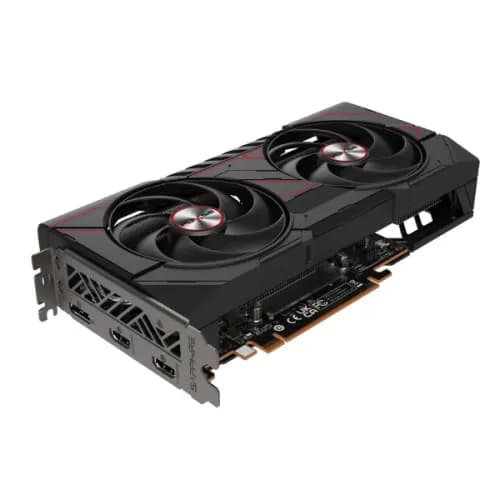

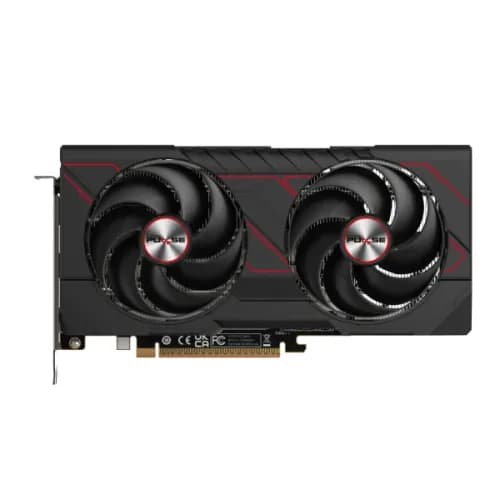

Sapphire Pulse AMD Radeon RX 9060 XT GAMING OC 16GB GDDR6 Graphics Card
Type:
Select Quantity:
Specifications
| Brand | AMD |
| Model | Pulse AMD Radeon RX 9060 XT GAMING OC |
| Type | GDDR6 |
| Size | 16GB |
| Resolution | 7680×4320 |
| Core Clock | Boost Clock: Up to 3290 MHz || Game Clock: Up to 2700 MHz |
| Memory Clock | 20 Gbps Effective |
| BUS Type | 128 bit |
| Memory Interface | PCI-Express 5.0 x16 |
| Stream Processors | 2048 |
| Display Port | 1 x DisplayPort 2.1a |
| HDMI | 2 x HDMI |
| Connectors | 1 x 8-pin Power Connector |
| Recommended PSU | Minimum 450 Watt Power Supply |
| Consumption | 170W Typical Board Power |
| Multi Display | 4 |
| DirectX | 12 Ultimate |
| Dimensions | 240(L)X 124(W)X 46.1 (H)mm |
| Others | 2.3 slot, ATX |
Description
Sapphire Pulse AMD Radeon RX 9060 XT Gaming OC 16GB GDDR6
Sapphire Pulse RX 9060 XT 16GB – RDNA 4 Architecture, 3290MHz Boost Clock & 20Gbps GDDR6
The Sapphire Pulse AMD Radeon RX 9060 XT Gaming OC 16GB is a high-performance graphics card designed for modern gaming, content creation, and demanding PC workloads. It is powered by AMD RDNA 4 architecture and features 16GB of GDDR6 memory on a 128-bit memory bus, providing ample graphics memory for high-resolution gaming and creative applications.
The card features 2048 stream processors and 32 compute units, including 3rd-generation ray accelerators and 2nd-generation AI accelerators. It reaches a boost clock of up to 3290MHz and a game clock of up to 2700MHz, while its 20Gbps memory speed helps provide fast data transfer for demanding workloads.
Sapphire's Dual-X cooling system combines AeroCurve fan blades, optimized composite heatpipes, an integrated cooling module, and a metal backplate to help maintain stable temperatures during extended use. The card also uses Honeywell PTM7950 thermal interface material and a 9-phase digital power design.
For modern displays, the graphics card provides two HDMI outputs and one DisplayPort 2.1a output, with support for resolutions up to 7680 × 4320. AMD technologies such as HYPR-RX, Fluid Motion Frames 2, FidelityFX Super Resolution 4, FreeSync, and Anti-Lag 2 further enhance the supported gaming experience.
Key Features
- AMD Radeon RX 9060 XT GPU
- AMD RDNA 4 Architecture
- 16GB GDDR6 Memory
- 128-bit Memory Bus
- 20Gbps Effective Memory Speed
- 2048 Stream Processors
- 32 Compute Units
- Up to 3290 MHz Boost Clock
- Up to 2700 MHz Game Clock
- 32 Ray Accelerators
- 64 AI Accelerators
- 32MB AMD Infinity Cache
- Dual-X Cooling Technology
- AeroCurve Fan Blade
- Honeywell PTM7950 Thermal Interface Material
- Metal Backplate
- PCIe 5.0 x16 Interface
- 2 × HDMI + 1 × DisplayPort 2.1a
- AMD HYPR-RX & AFMF 2
- AMD FSR 4 with AI Upscaling
- AMD FreeSync & Anti-Lag 2
- 170W Typical Board Power
Why Choose Sapphire Pulse RX 9060 XT 16GB?
- 16GB GDDR6 memory for demanding modern workloads
- Powerful RDNA 4 graphics architecture
- High 3290MHz boost clock
- Dedicated ray-tracing and AI accelerators
- Efficient Dual-X cooling system
- Modern DisplayPort 2.1a connectivity
- Support for AMD FSR 4 and Fluid Motion Frames 2
- Compact 2.3-slot design
- Metal backplate for additional structural support
